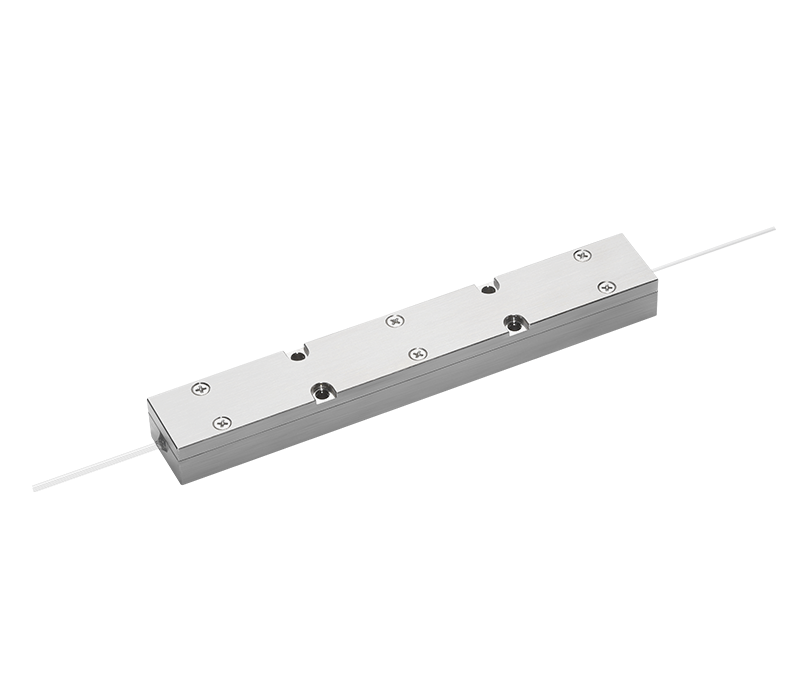

High Power (18+1)x1 Pump & Signal Combiner
The High Power (18+1)x1 Pump & Signal Combiner enables highly efficient combining of the powers from up
to18 multimode pump diodes and a red beam from the signal fiber into a double cladding output fiber. The
device can handle maximum 2000 W combined power. Available for different fiber types.
Key Features | Applications |
lHigh Power Handling | lkW Class Fiber Laser |
lHigh Coupling Efficiency | |
lProprietary Fiber Tapering Technique |
Parameter | Unit | Value |
Product Type | - | (18+1) ×1 |
Pump Wavelength Range | nm | 900 - 1000 |
Signal Wavelength Range | nm | 650 |
Fiber Type for Input (Pump Channel) | - | Nufern MM-S135/155-22FA |
Fiber Type for Input (Signal Channel) | - | Nufern LMA-GDF-20/400-M |
Fiber Type for Output | - | Nufern LMA-GDF-20/400-M |
Max. Pump Power per Port | W | 150 |
Max. Combined Pump Power | W | 2700 |
Max. Signal Channel Insertion Loss | dB | 0.8 |
Typ. Pump Efficiency | % | 98 |
Min. Pump Efficiency | % | 97 |
Package Dimensions | mm | 100 (L) ×15 (W) ×10 (H) |
Operating Temperature | ℃ | -5 to +65 |
Storage Temperature | ℃ | -40 to +85 |
